Home > Product Center > Shisha cans Snus cans customized automatic heat shrink packaging machine

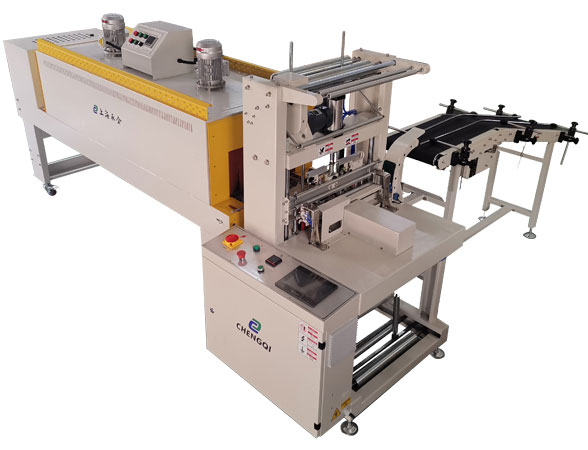

Shisha cans Snus cans customized automatic heat shrink packaging machine

Describe

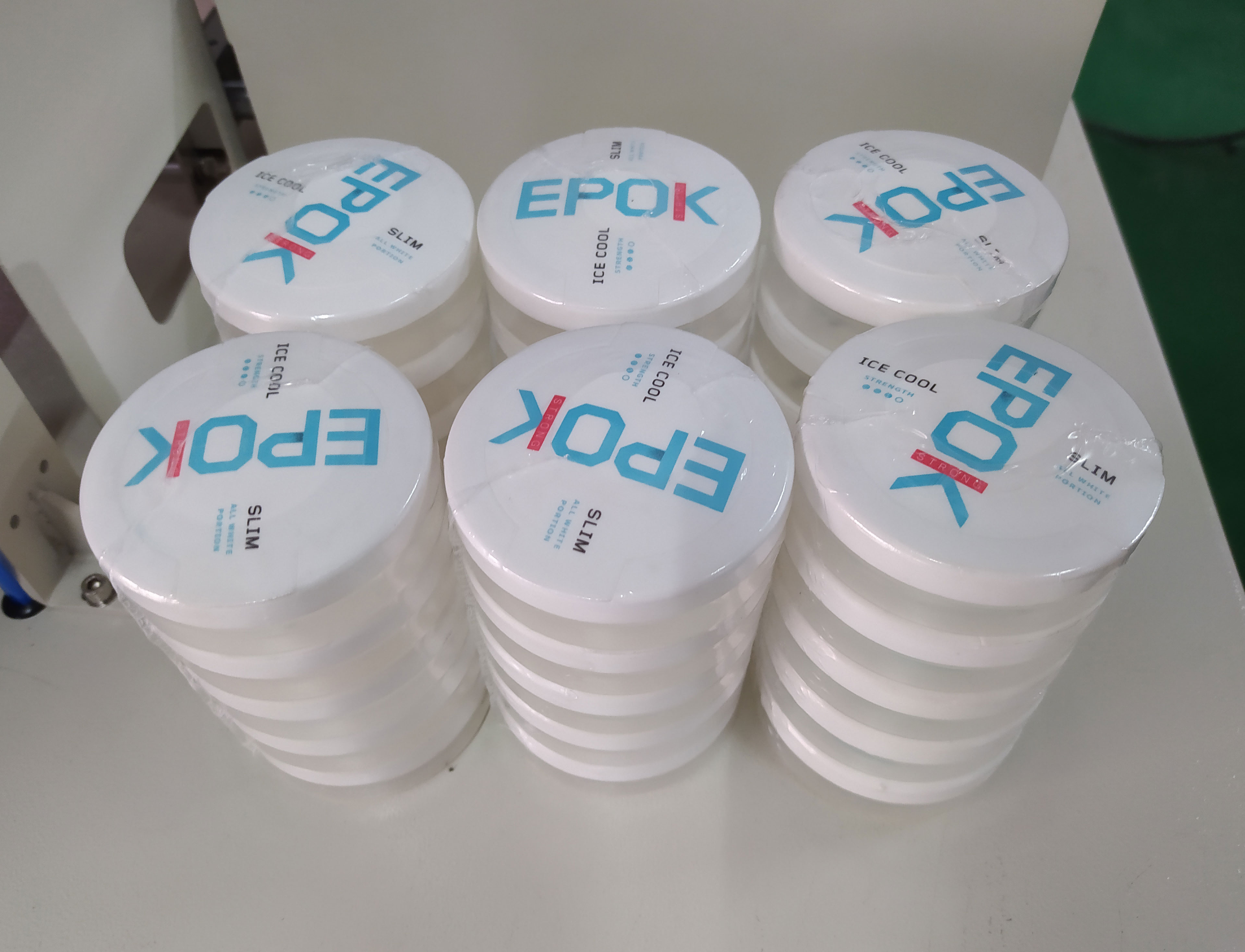

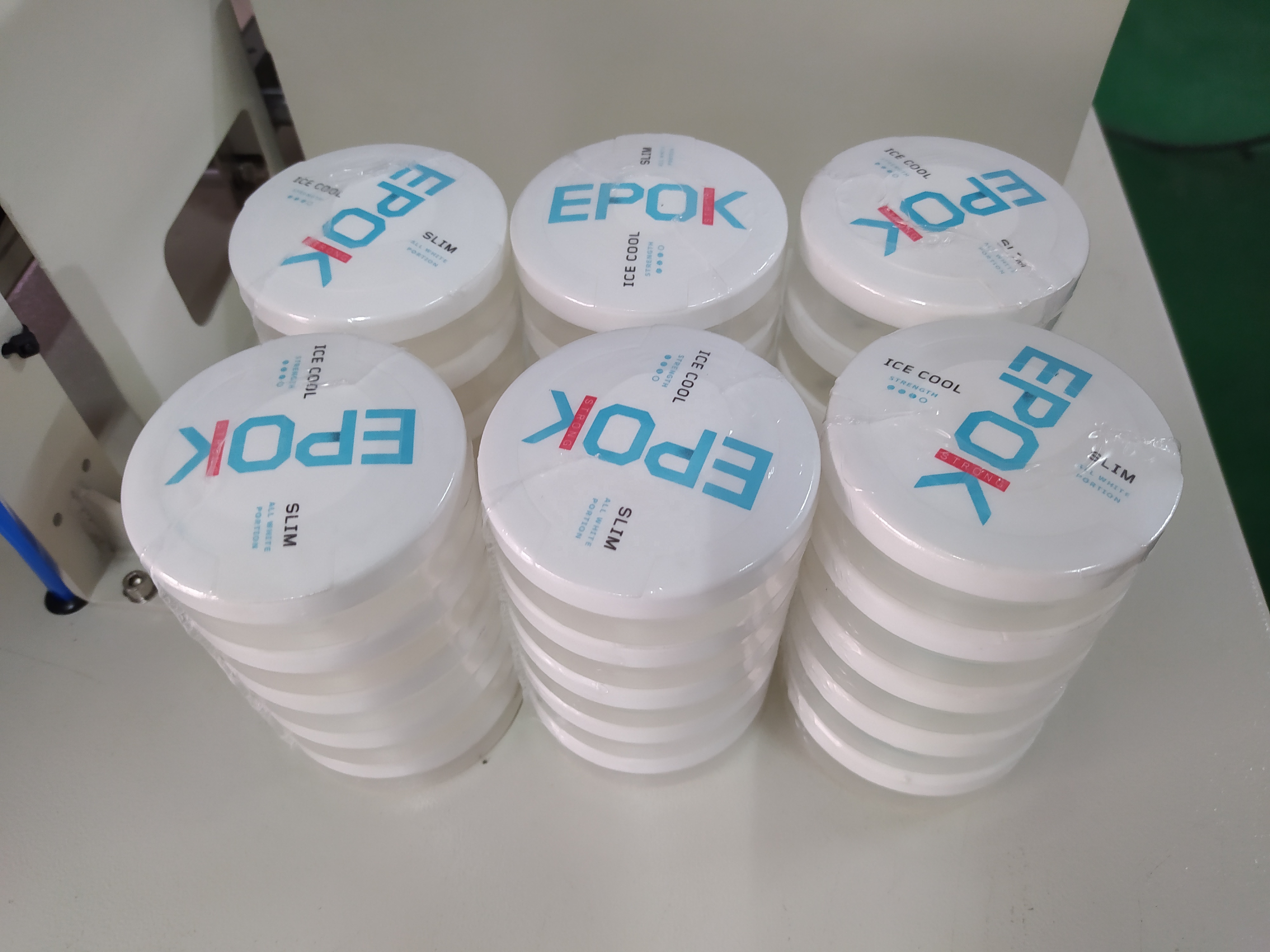

•This machine is mainly applied to snus can,round jars,tapes shrink wrap package.

•Imported photoelectric sensor, positioning accuracy, fast response.

•Adopt Panasonic PLC programmable controller and 7-inch man machine interface, simple operation.


•This machine is mainly applied to snus can,round jars,tapes shrink wrap package.

•TF6540L fully automatic sleeve sealer with side feeding design, suitable for lighter items of collection packaging.

•Sealing knife uses the special steel knife with Daikin Teflon which is anti-stick coating & anti-high temperature. So the sealing will not have cracking, coking and smoking.

•Imported photoelectric sensor, positioning accuracy, fast response.

•Adopt Panasonic PLC programmable controller and 7-inch man machine interface, simple operation.

•The separate control box makes it easy to use for operator.

•Equipped with pressure device makes sure the position is stable even for the light product during the procession.

•The sealing blade itself is also quipped with automatic protection function which effectively prevent from accidental cutting.

•The entire machine realizes unmanned operation with the production line connecting.

•Automatic mode and manual mode can be switched at any time which convenient to replace the shrink film.


•BS4525PE heat shrink tunnel adopts two hot air circulation motor makes the hot air in the tunnel is even, constant temperature.

•The chain conveyor made of solid steel covered with imported durable silicone tube.

•The control box makes sure the electrical components with good ventilation.

•With cold wind equipment which play an effective role in cooling.

ModelTF6540L
Power SupplyAC 220/380V 3PH 50Hz
Power1.8KW
Max. Packing Size(L)≤250mm;(D)≤70mm;(H)<100mm
Sealing Size(W)400mm
Table Height750mm
Packing Speed5-10bags/min
Air Source6kgf/cm2
Shrink FilmPE
Film Size(W)≤350mm;(D)≤200mm;(G)≤20KG
Sealing TypeSleeve type
Machine SizeL2650×W825×H1610mm
Package SizeL2770×W920×H1650mm
G./N. Weight360/250kg


ModelBS4525PE
Power SupplyAC 220/380V 3PH 50Hz
Power15KW
Table Height750mm
Conveying Load30KG
Conveyor Speed1-15m/min
Tunnel SizeL1500×W450×H250mm
Overall DimensionsL2000×W700×H1450mm
Package SizeL2100×W800×H1580mm
G./N. Weight310/220Kg
