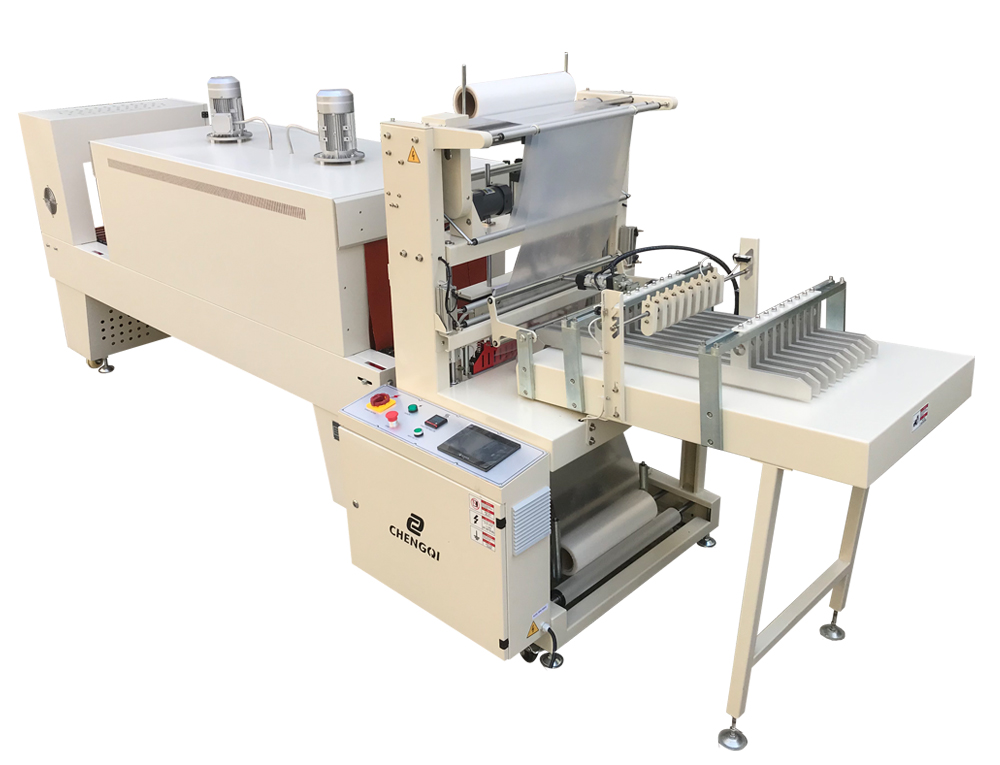

Home > Product Center > Masking Tape Accordion type Shrink Wrapping Packing Machine
•TF6040J adopts the unique design and compact structure.
•It is very suitable for accordion type masking tapes,bopp tapes packing.
•Adopt Panasonic PLC programmable controller and 7-inch man machine interface, simple operation.
•TF6040J adopts the unique design and compact structure. It is very suitable for accordion type tapes packing.
•Sealing knife uses the special steel knife with Daikin Teflon which is anti-stick coating & anti-high temperature. So the sealing will not have cracking, coking and smoking.
•Imported photoelectric sensor, positioning accuracy, fast response.
•Adopt Panasonic PLC programmable controller and WEINVIEW 7-inch man machine interface, simple operation.
• The user-friendly control box makes the operation much easier.
•Equipped with pressure device makes sure the position is stable even for the light product during the procession.
•The sealing blade itself is also quipped with automatic protection function which effectively prevent from accidental cutting.
•The entire machine realizes unmanned operation with the production line connecting.
•Automatic mode and manual mode can be switched at any time which convenient to replace the shrink film.
•BS6040PE heat shrink tunnel adopts hot air circulation motor makes the hot air in the tunnel is even, constant temperature.
•The chain conveyor made of solid steel covered with imported durable silicone tube.
•The separate control box makes sure the electrical components with good ventilation.
•With cold wind equipment which play an effective role in cooling.
Model | TF6040J |
Power supply | 220/380V 3PH 50/60Hz |
Working power | 1.8KW |
Max. Packing Size | (W)≤400mm;(H)≤100mm |
Max. Sealing Size | (W)600mm |
Table height | 850mm |
Packaging speed | 5-15pcs/min(depend on product size) |
Air source | 6kgf/cm2 |
Shrink film | PE/PVC |
Max film size | (W)≤580mm;(D)≤250mm;(weight)≤35KG |
Sealing form | Sleeve type |
Machine size | L1550×W1280×H1750mm |
Overall dimension | L1720×W1380×H1820mm |
G./N. weight | 432/334kg |
Model | BS6040PE |
Voltage | 220/380V 3PH 50/60Hz |
Power | 22KW |
Table Height | 800±50mm |
Conveying Load | 30KG |
Tunnel size | L1800×W600×H400mm |
Conveyor Speed | 0-15m/min |
Machine Size | L2800×W850×H1620mm |
Package Size | L2900×W950×H1690mm |
G./N. Weight | 540/450Kg |
