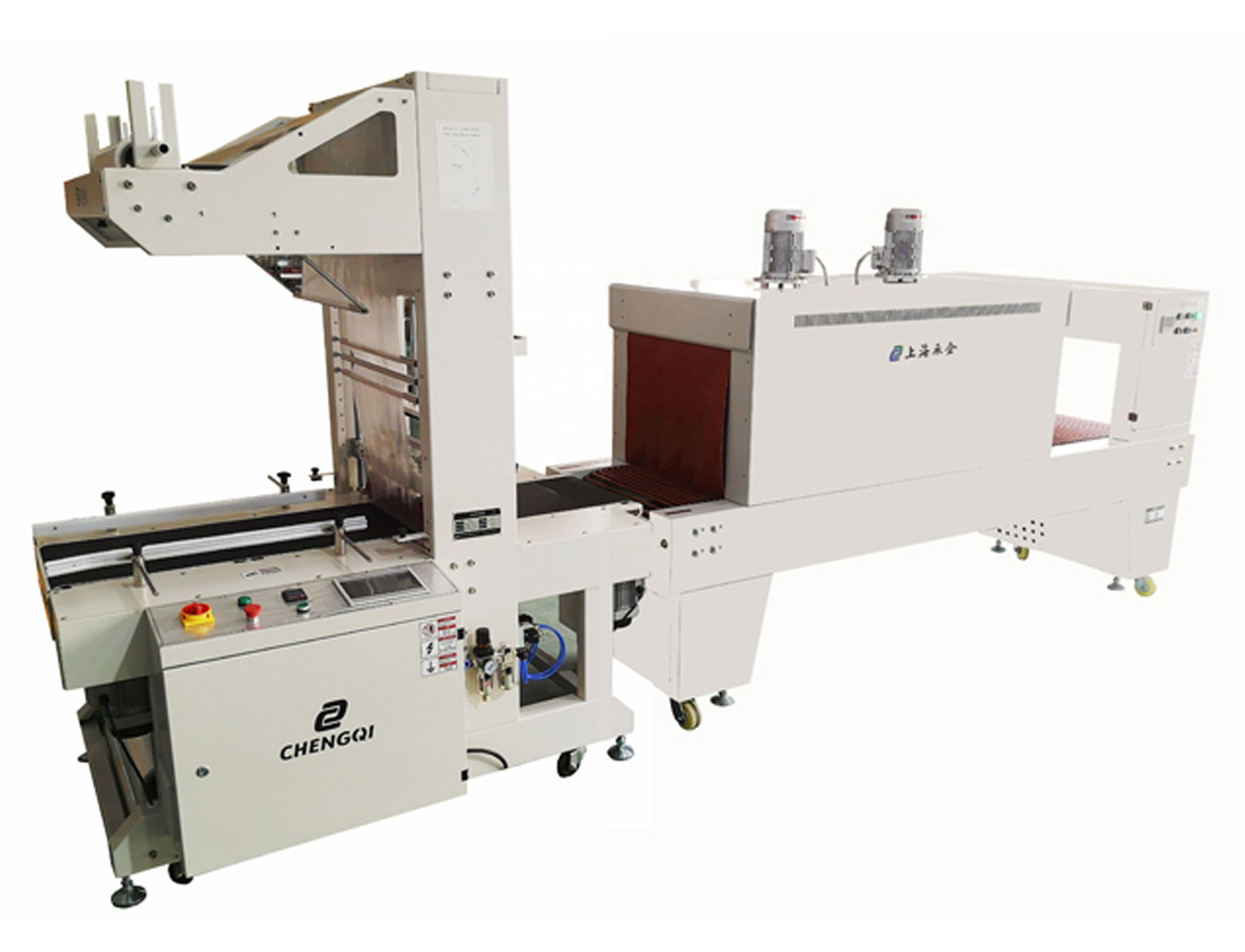

Automatic side feeding sleeve sealing & shrink wrapping machine

Describe

•TF6540L fully automatic sleeve sealer with side feeding design, suitable for lighter items of single or collection packaging.

•Adopt Panasonic PLC programmable controller and MCGS 7-inch man machine interface, simple operation.

•Equipped with pressure device makes sure the position is stable even for the light product during the procession.

•TF6540L fully automatic sleeve sealer with side feeding design, suitable for lighter items of single or collection packaging.

•Sealing knife uses the special steel knife with Daikin Teflon which is anti-stick coating & anti-high temperature. So the sealing will not have cracking, coking and smoking.

•Imported photoelectric sensor, positioning accuracy, fast response.

•Adopt Panasonic PLC programmable controller and MCGS 7-inch man machine interface, simple operation.

•The separate control box makes it easy to use for operator.

•Equipped with pressure device makes sure the position is stable even for the light product during the procession.

•The sealing blade itself is also quipped with automatic protection function which effectively prevent from accidental cutting.

•The entire machine realizes unmanned operation with the production line connecting.

•Automatic mode and manual mode can be switched at any time which convenient to replace the shrink film.


•BS6040PE heat shrink tunnel adopts two hot air circulation motor makes the hot air in the tunnel is even, constant temperature.

•The chain conveyor made of solid steel covered with imported durable silicone tube.

•The control box makes sure the electrical components with good ventilation.

•With cold wind equipment which play an effective role in cooling.

ModelTF-6540L
Power SupplyAC 220/380V 3PH 50/60Hz
Power1.8KW
Max. Packing Size(L)≤450mm;(W)<300mm;(H)≤380mm
Sealing Size(W)650mm
Table Height800mm
Packing Speed10-15pcs/min(decide on product size)
Air Source6kgf/cm2
Shrink FilmPE
Film Size(W)≤550mm;(D)≤250mm;(G)≤35KG
Sealing TypeSleeve type
Machine SizeL2460×W1230×H2000mm
Package SizeL2550×W1350×H2150mm
G./N. Weight420/330kg


ModelBS6040PE
Power SupplyAC 220/380V 3PH 50/60Hz
Power22KW
Table Height800mm
Conveying Load30KG
Conveyor Speed1-15m/min
Tunnel SizeL1800×W600×H400mm
Machine Size L2800×W850×H1620mm
Package SizeL2850×W940×H1770mm
G./N. Weight540/450KG
