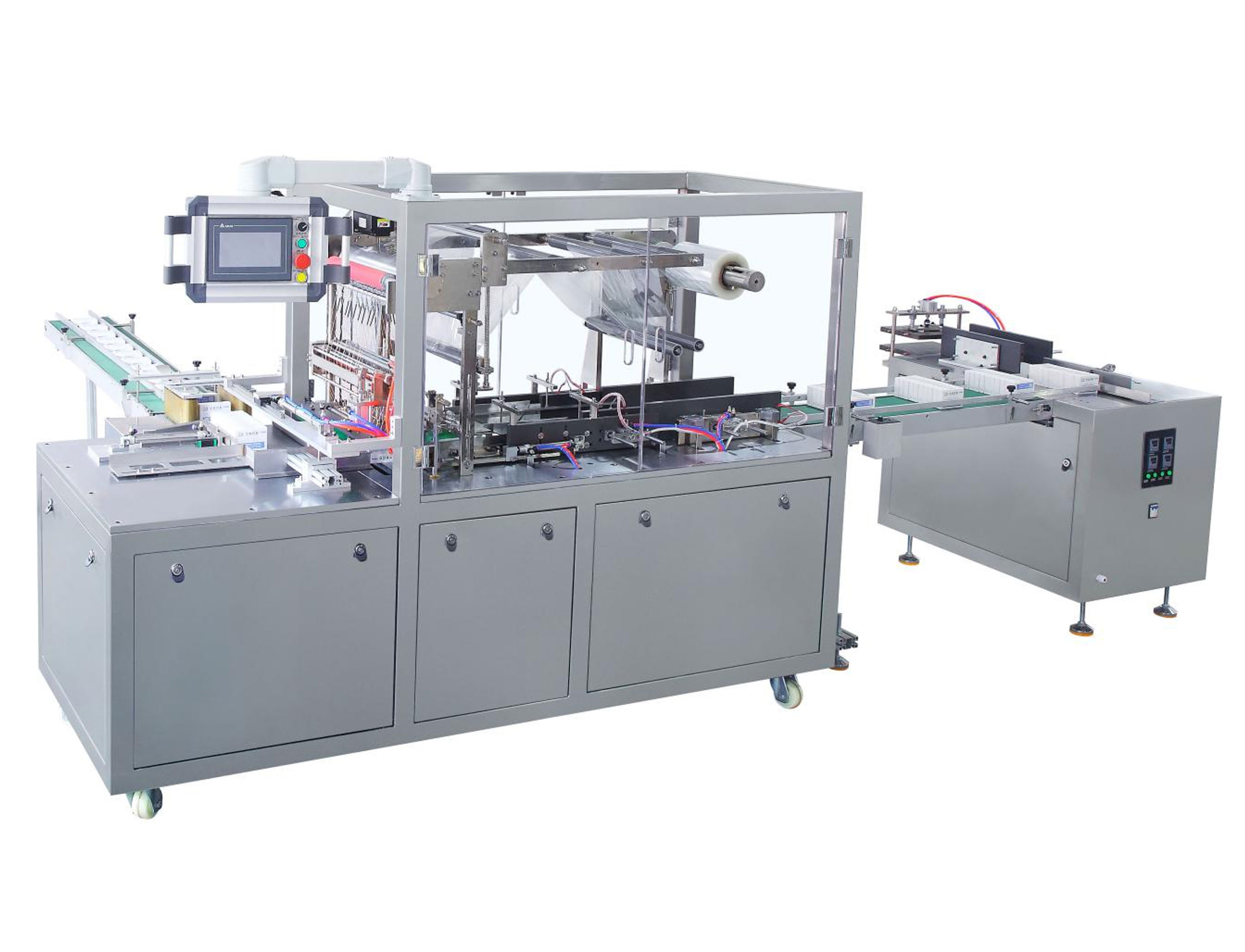

Automatic Medicine Box Cellophane Wrapping Machine

Describe

1.Compact structure and reasonable,easy operation and maintenance;

2. Adopt multi-function digital frequency inverter, stepless variable speed;

3. Mould replacement is convenient;

4. With automatic feeder, automatic counting, etc;

This machine is widely applicable to the automatic film packaging (with gold tear tape) of various single boxed articles. With new-type of double safeguard, no need to stop the machine, other spare parts will not be damaged when the machine runs out of step.. Original unilateral hand swing device to prevent adverse shaking of the machine, and the non-rotation of the hand wheel when the machine keeps running to secure the security of the operator. No need to adjust the height of worktops on both sides of the machine when you need to replace mould, no need to assemble or dismantle the material discharge chains and discharge hopper.


characteristic:

1.Compact structure and reasonable, stable performance is advanced, easy operation and maintenance;

2. Adopt multi-function digital frequency inverter, stepless variable speed;

3. Mould replacement is convenient;

4. With automatic feeder, automatic counting, etc;

5. The transmission part is equipped with all kinds of protection devices and fault prompt;

6. Commissioning film feeding clutch, no waste of packing materials.


ModelSW-560
Production capacity10-40packs/min
Packing dimensionsL+H+(5-10mm)≤450mm
Power supply220V 50Hz-60Hz
Motor Power1.5Kw
Electric heating5Kw
Packing materialBOPP film
ApplicationSingle box or multiple boxes
Conveyor frame1500×150×910mm
Overall dimensions2200*1100*1800mm
Weight1050kg
